Super Waterproof Sonar Pipe Pipeline Drain Inspection System
Super Waterproof Sonar Pipe Pipeline Drain Inspection System
Super Waterproof Sonar Pipe Pipeline Drain Inspection System
Super Waterproof Sonar Pipe Pipeline Drain Inspection System
1 / 4
Super Waterproof Sonar Pipe Pipeline Drain Inspection System
Super Waterproof Sonar Pipe Pipeline Drain Inspection System
Super Waterproof Sonar Pipe Pipeline Drain Inspection System
Super Waterproof Sonar Pipe Pipeline Drain Inspection System

Super Waterproof Sonar Pipe Pipeline Drain Inspection System

Customization: Available
After-sales Service: Spare Parts Offered
Warranty: 12months
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
X4
Type
Environmental Monitoring Instrument
Sonar Capsule Dimension
346*70mm
Sonar Capsule Pipe Diameter
6000mm
Main Controller Dimension
110*165*35mm
Cable Reel Dimension
420*330*520mm
Cable Length
150m
Signal Cable Length
5m
Transport Package
Packed in Plywood Case
Production Capacity
50 Sets Per Month
✓

Product Overview

Super Waterproof Sonar Pipe Pipeline Drain Inspection System (Model: X4)

When the pipeline is full of water without emptying conditions, any traditional video testing method fails to obtain a better testing effect. However, X4 pipeline section sonar imager is just applicable to such pipelines (various pipelines with diameter or section up to 125mm~6000mm).
Sonar Pipe Inspection System
⚙

Technical Parameters

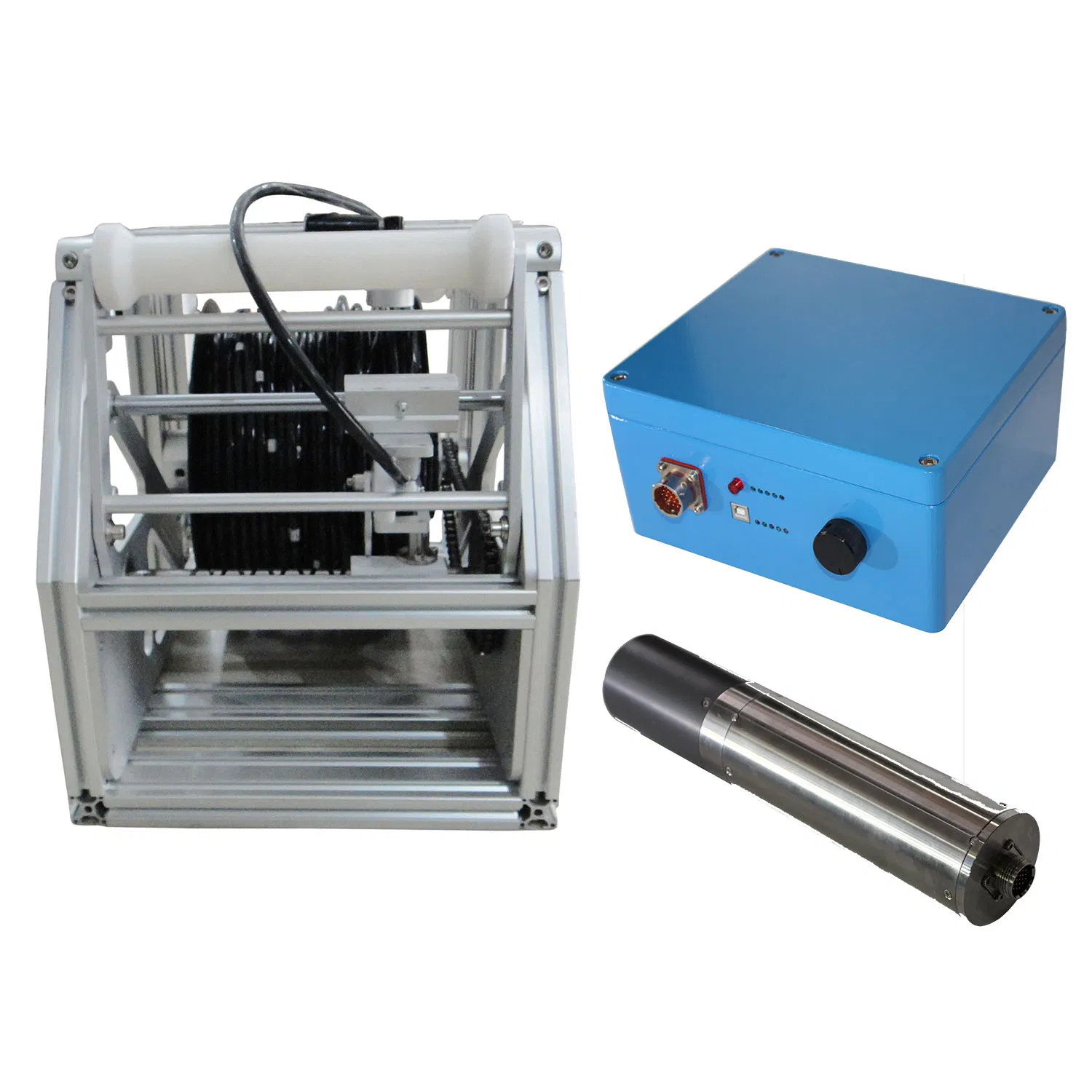

Component Specifications

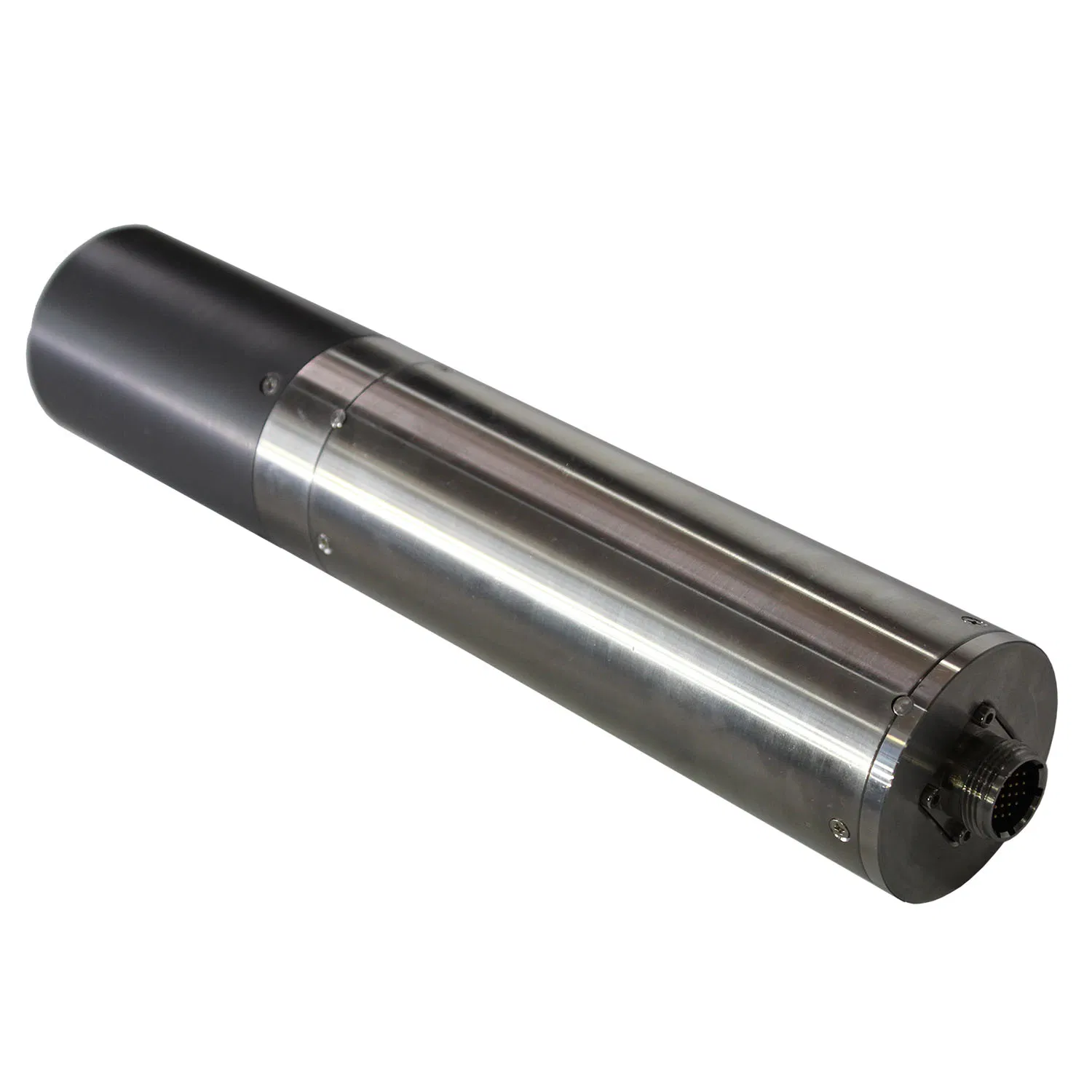

Sonar capsule - Size: 346mm length; diameter 50mm/70mm
- Material: stainless casing
- Max pipe diameter: 6000mm
- Power: 26V DC, 0.5A-1A
- Weight: 3kg

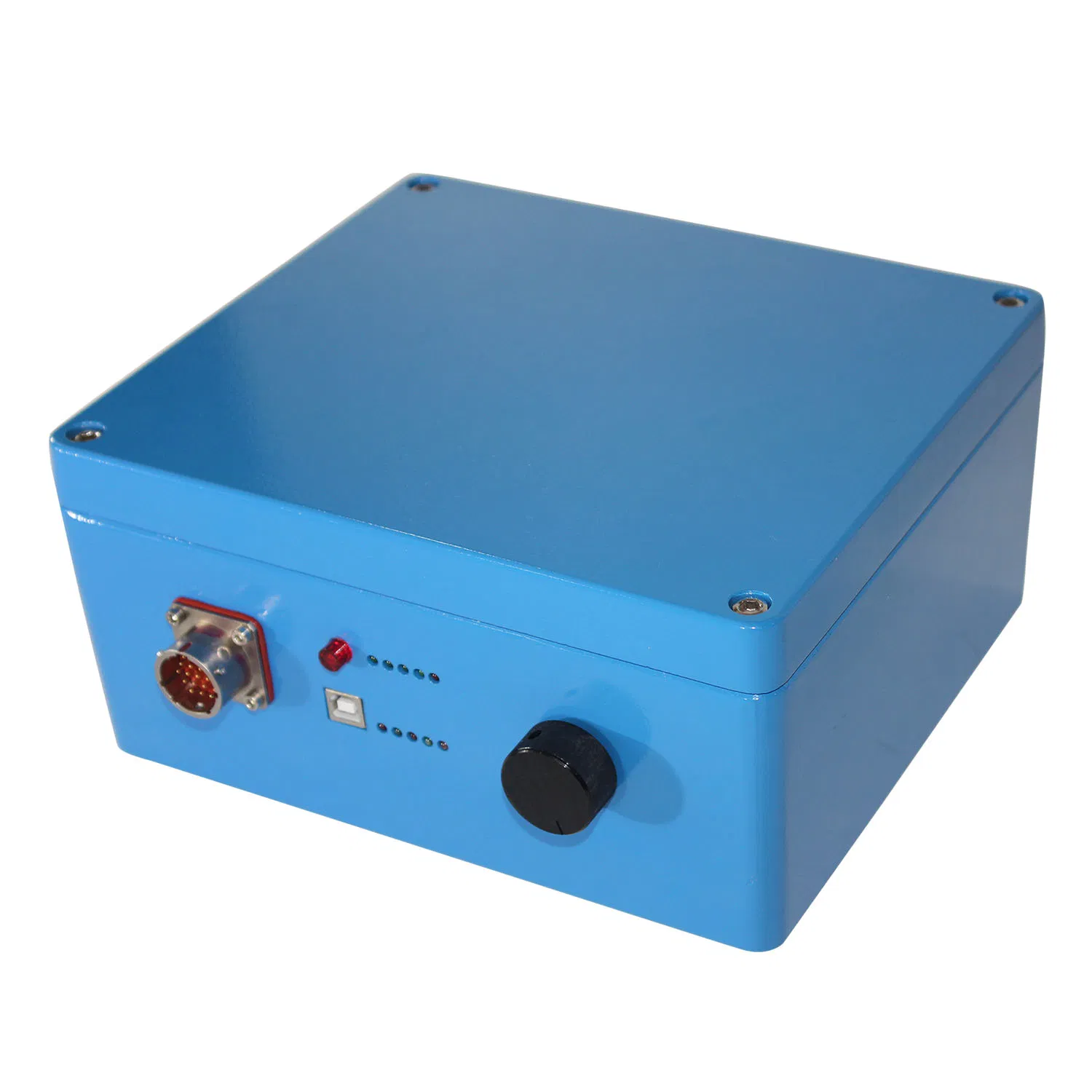

Master control box - Size: 110mm * 165mm * 35mm
- Weight: 0.2kg
- Power supply: 220V
Manual Cable Reel - High precision coder (+ 0.1M)
- Manual winding device
- Protection: IP63 dust/water resistance
- Standard length: 150m (customizable)
- Size: 330mm * 420mm * 570mm
Probe Floating cylinder - Stainless material; integral design
- Range: 150mm~6000mm
- Size: 140mm * 70mm * 400mm
- Buoyancy force: 5kg
★

Application & Details

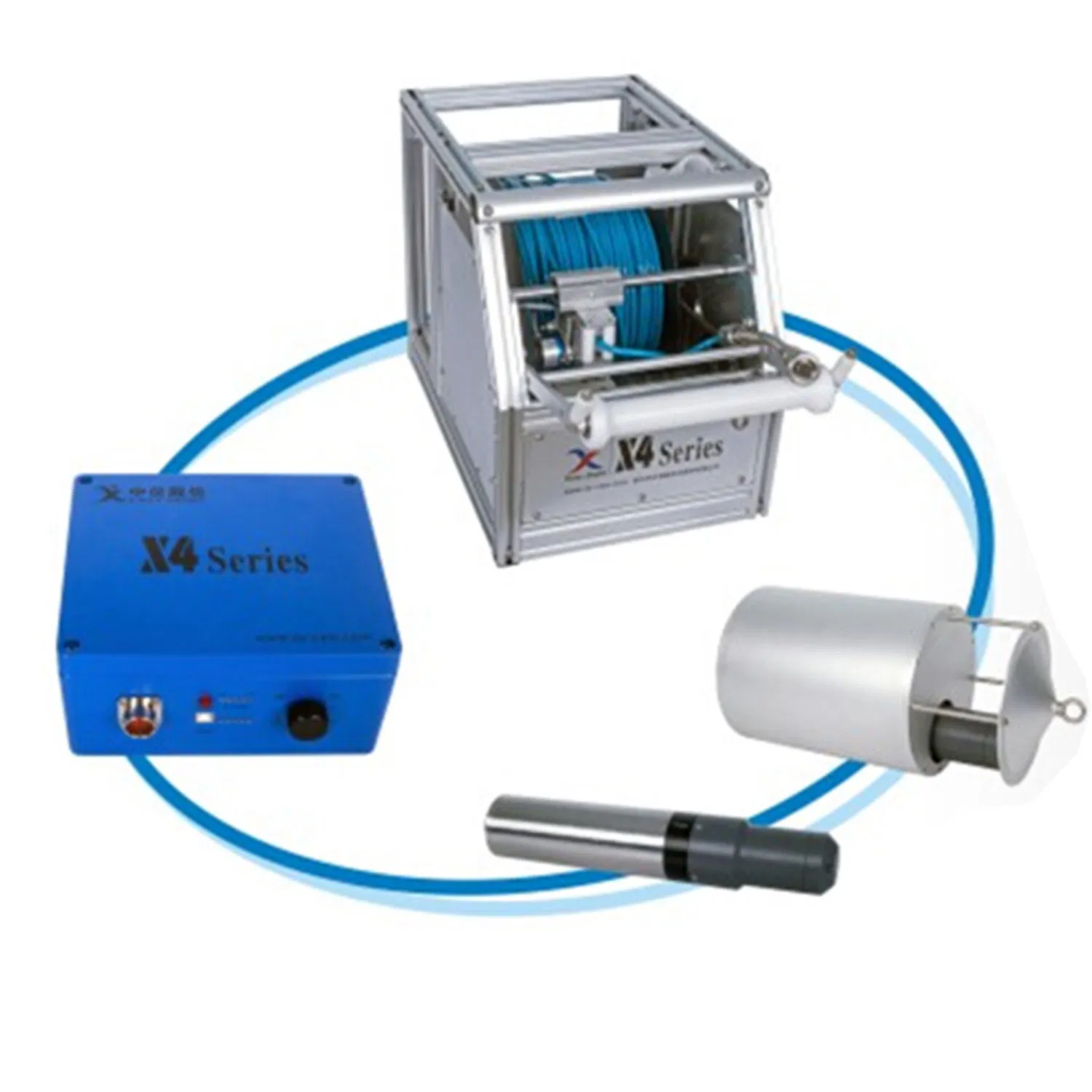

For structural defects (deformation, collapse, crack, encrustation) and functional defects (deposition, floaters), X4 provides accurate measurement and analysis. It is composed of four parts: sonar capsule, cable reel, host computer, and specialized imaging analysis software.
Product Details
✚

Core Advantages

🔵

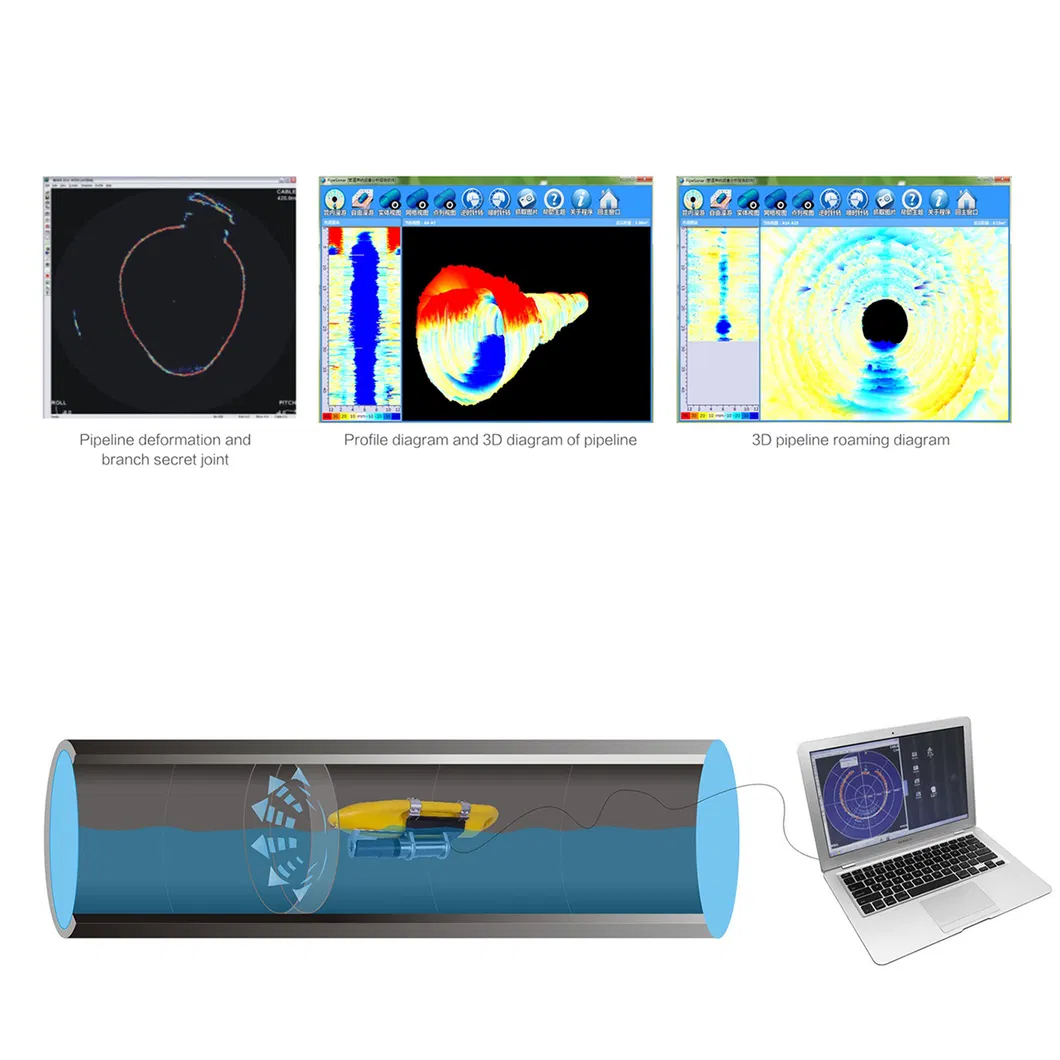

Three-dimensional imaging: Helps operators observe pipe inner construction defects more clearly with 3D display and rotation capabilities.
🔵
Deep pipe water inspection: Applicable when water depth exceeds 300mm and drainage is not possible.
🔵
Synchronous inspection: Can integrate floating valves to realize both CCTV and sonar inspection above and under water simultaneously.
🌍

Exhibitions & Quality

WEFTEC Exhibition
Tokyo Exhibition
Certificates
📦

Packing & Shipping

Packing and Shipping
🛠

Service Commitment

1. Warranty: 12 months from arrival date with lifelong maintenance.
2. Technical Support: Efficient drainage network solutions and repair services.
3. Quality Control: Strict inspection and testing before packaging.
4. Training: Detailed operational manuals and English version training materials provided.
5. OEM: Support for custom branding and logos.
?

Frequently Asked Questions

Q1: What is the maximum pipe diameter the X4 can inspect?
A: The X4 system is applicable for various pipelines with a diameter or section ranging from 125mm up to 6000mm.
Q2: Can this system work in pipes completely filled with water?
A: Yes, it is specifically designed for pipelines full of water where traditional video testing (CCTV) fails.
Q3: What are the main components of the X4 sonar system?
A: It consists of a sonar capsule, a manual cable reel, a host computer, and specialized pipeline sonar testing imaging analysis software.
Q4: How is the equipment protected during international shipping?
A: We use standard plywood cases with foam padding to prevent shaking and a thick plastic bag for waterproofing.
Q5: Does the system support 3D imaging?
A: Yes, the system features 3D sonar imaging which allows operators to rotate and check images and videos from any orientation.
Q6: What should I do if the machine encounters a technical issue?
A: Please contact our support team immediately. We respond within 24 hours to provide technical guidance or repair solutions.
