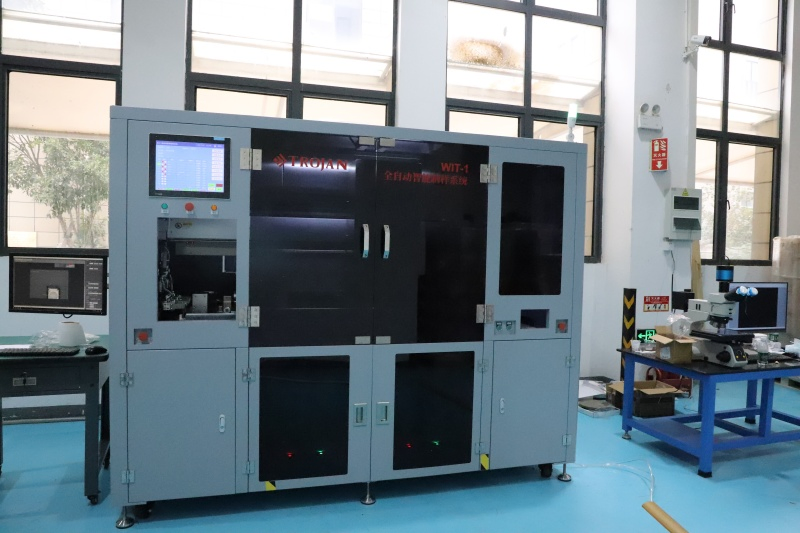

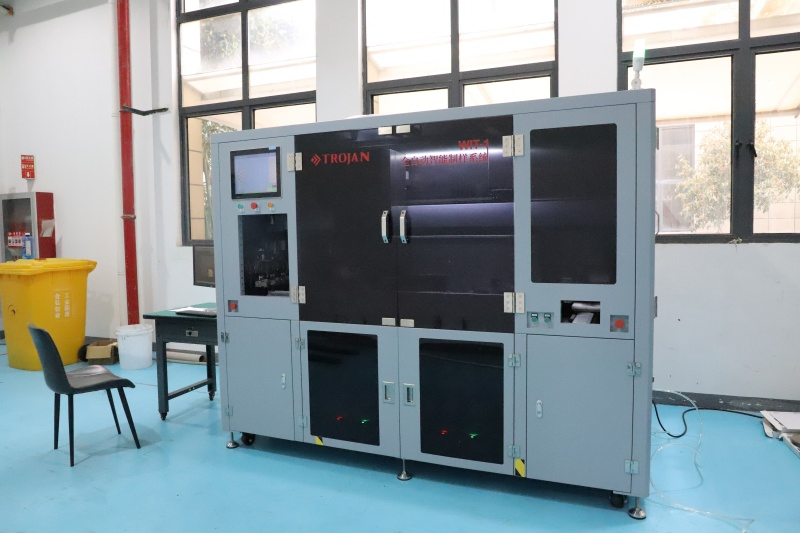

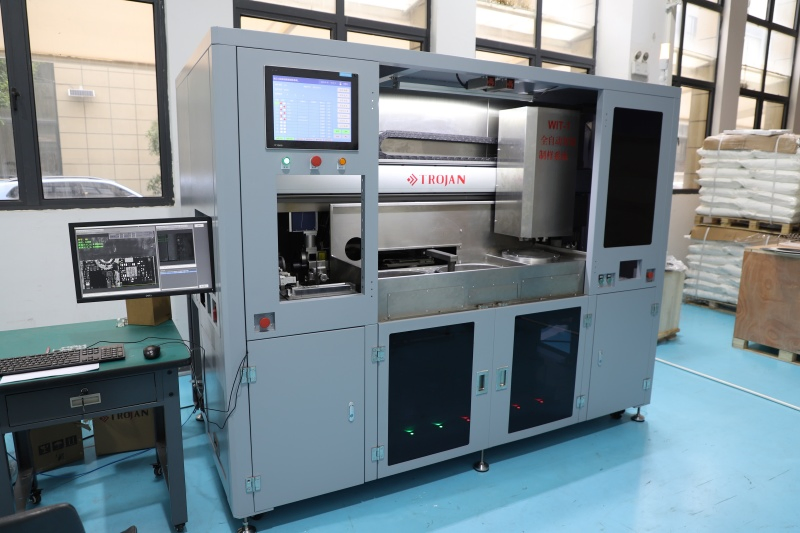

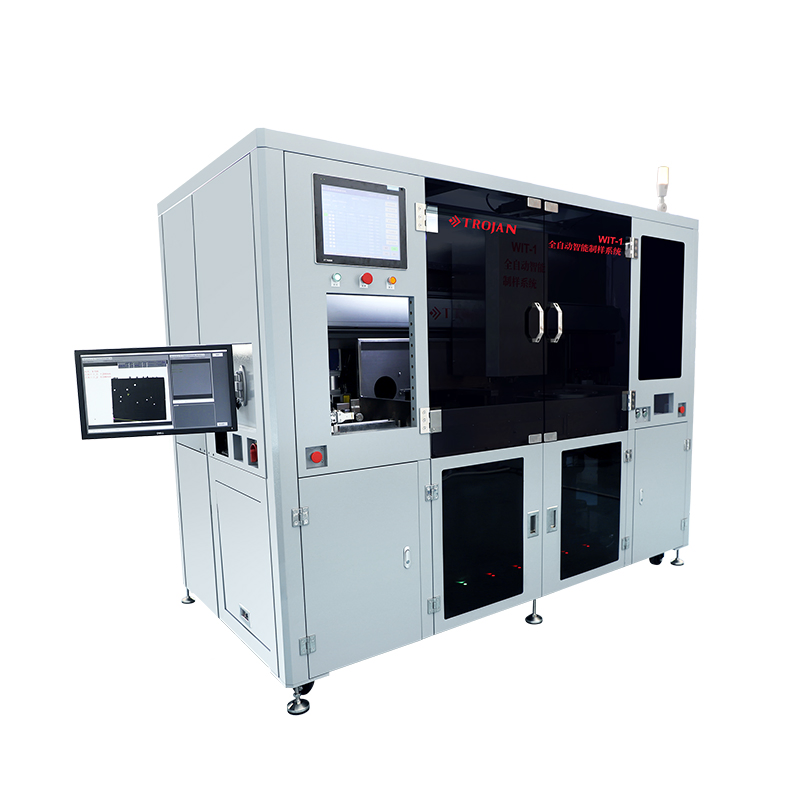

Smart WIT-1 Automated Sample Preparation System for Precise Laboratory Analysis

Customization:	Available
After-sales Service:	1 Year
Processing Method:	Grind

📋 Basic Information

Warranty	1 Year	Environment	Normal Pressure and Temperature
Display	Digital Display	Performance	Automatic
Power Supply	220V	Certification	CE
Weight	3000kg	Customized	Available
Speed	100-1000rpm	Diameter	250mm
Direction	Cw/Ccw	Torque	20-360n
Rated Current	20A	Power	220V, 750W
Accuracy	0.1mm	Quantitative Height	0.1mm-10mm
Transport Package	Wooden Case	Specification	1.3mx2.5m*2.3m
Origin	China	HS Code	90241090

🔍 Product Description

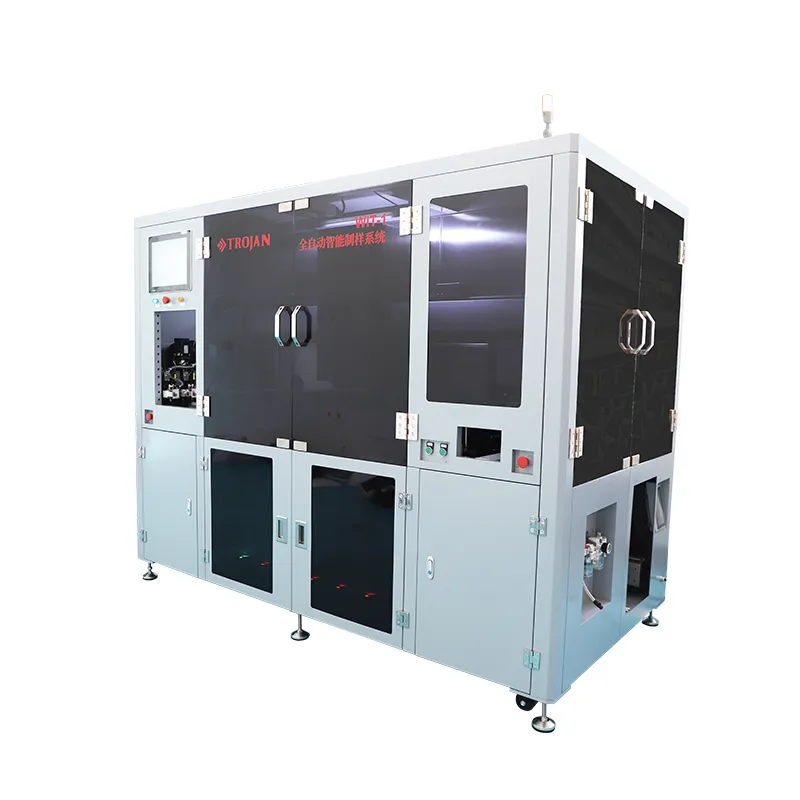

Model: WIT-1 Fully Automatic Intelligent System
Input Electricity	220VAC, 20A
Compressed Air	Pressure > 0.6MPa
External Water	Water pressure < 0.3MPa
Sample Mounting Box	Square: 22x15x12, 30x27x12, 46x39x12mm
Alignment Station	21 Samples, 25 Million Pixel Camera, Laser Marking
Mobile Grinding Head	0.4KW, 360-degree rotation, 3 samples capacity
Grinding Station	1.0KW, 100-1000rpm, 250mm disc diameter
Safety Features	Emergency stop, Transparent protective door, Safety light curtain

✨ Key Features

✔ High-precision CCD lenses for ±10μm grinding precision.

✔ Multi-line calibration for automatic sequential grinding.

✔ Sample cache area for efficient batch processing.

✔ Simultaneous grinding and polishing of up to 3 samples.

✔ Controlled pressure and speed to prevent sample cracking.

✔ Laser marking and coding for full traceability.

✔ Automatic replacement of up to 10 grinding disks.

✔ Integrated cleaning station with ultrasonic and air drying.

🎯 Scope of Application

📦 Packaging & Shipping

🎖 Certifications & Exhibition

❓ Frequently Asked Questions

Q: I haven't used this kind of machine before, is it easy to operate?

A: Yes. We provide comprehensive English tutorials and guide videos. Our technical team is also available via email and online chat to assist you with any operational questions.

Q: What happens if the machine encounters a problem at my facility?

A: Within the warranty period, we provide free replacement parts for any issues arising under normal use. We offer remote diagnostic support to ensure minimal downtime.

Q: What are the accepted payment terms?

A: We accept various payment methods including TT, PayPal, LC, and Western Union. We can operate under EXW, CIF, or FOB terms.

Q: Can the system be customized for specific sample sizes?

A: Yes, the system supports customized mounting boxes and parameters to accommodate different industrial requirements in semiconductor and PCB analysis.

Q: How is the grinding precision maintained?

A: The system utilizes high-definition CCD cameras for precise positioning and automated pressure control, achieving a consistent grinding precision of ±10μm.

Q: What kind of maintenance does the cleaning station require?

A: The integrated cleaning station uses ultrasonic and water/air flow. Regular checks of the water pressure and cleaning the ultrasonic tank are recommended for optimal performance.
